Linking states and animations

We start with the connections between the three states (idle, walk, and run), and map the corresponding model animation clips to these three states. The IdleWalkRunBlending struct and the msIWRBlendings member variable in the ModelSettings struct are already in place, so we only have to take care of the UI.

Mapping idle/walk/run animations

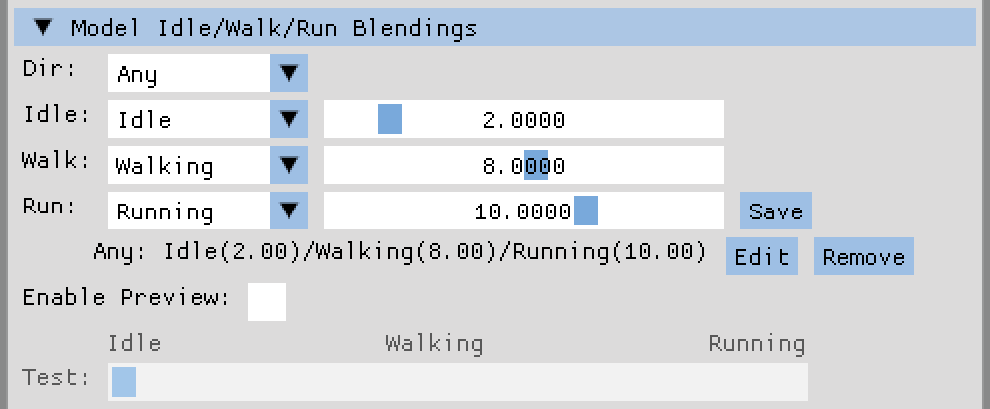

Figure 7.1 shows the mapping section of the Control window for the three states: idle, walk, and run:

Figure 7.1: Mapping between move direction, move state, and animation clip

We will step through the control elements from top to bottom and explore the new code in the createSettingsWindow() method of the UserInterface class:

The Dir combo box shows the names of the available entries of the moveDirection enum class. The combo box is filled by using the micMoveDirectionMap map from the ModelInstanceCamData struct. We store the selected entry in a static moveDirection type variable to retain...
